AMD Radeon RX Vega’s Official Specifications And Pricing Released

AMD Radeon RX Vega release
Photo from AMD Radeon

Last night at SIGGRAPH 2017 (30 July), AMD finally revealed more details about their upcoming next generation graphics cards, RX Vega. Similar to how previous rumors suggested, there are three different models of RX Vega cards. How is RX Vega stacking up in the GPU market?

The RX Vega lineup is using AMD’s next-gen compute units and pixel engines to provide better performance in 3D rendering and shading for games. All RX Vega cards utilize high bandwidth memory (HBM2) for cache, which can help deal with high-resolution textures.

RX Vega 64

AMD Radeon RX Vega release
Limited Edition. Photo from AMD Radeon

The RX Vega 64 is the highest end card in the whole RX Vega family. There will be both an air-cooled and an all-in-one liquid-cooled version. A limited edition card is also available, but there is no difference in specifications between the reference model, only the change in exterior casing design (silver brushed aluminium shroud).

RX Vega 64 has a fully featured Vega GPU with 64 next-gen compute units and 4096 stream processors.It is also equipped with 8GB of HBM2 memory, running on a 2048-bit memory bus for a total 483.8 GB/s bandwidth. The liquid-cooled variant will be clocked higher out of the box and have a higher TDP than the air-cooled one.

RX Vega 56

AMD Radeon RX Vega release
Reference Design. Photo from AMD Radeon

The RX Vega 56 is a less powerful card with a cut-down Vega GPU. Only one air-cooled reference model will be offered. It has 54 next-gen compute units and 3584 stream processors, paired with 8GB of HMB2 memory. Although the memory bus is the same as RX Vega 64 at 2048-bit, its bandwidth is limited to “only” 410 GB/s.

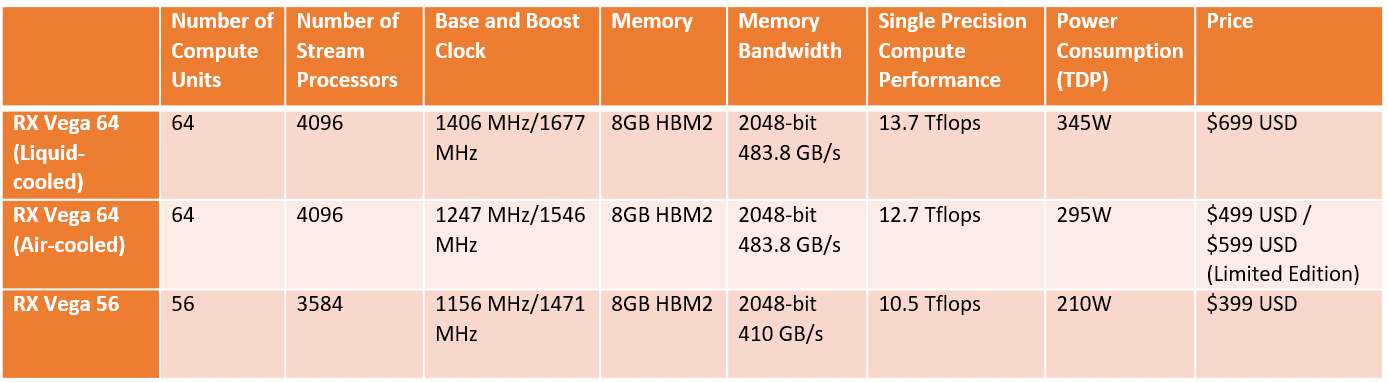

AMD Radeon RX Vega specifications
Prices shown are the MSRP

Due to better cooling potential, the RX Vega 64 air-cooled card will have a lower base and boost clock speed at 1247 MHz/1546 MHz, compared to the liquid-cooled card’s 1406 MHz/1677 MHz. However, the liquid-cooled RX Vega 64 will consume 50W more power, at 345W TDP.

The RX Vega 56 is clocked at 1156 MHz/1471 MHz, with a 210W TDP.

AMD Radeon RX Vega specifications

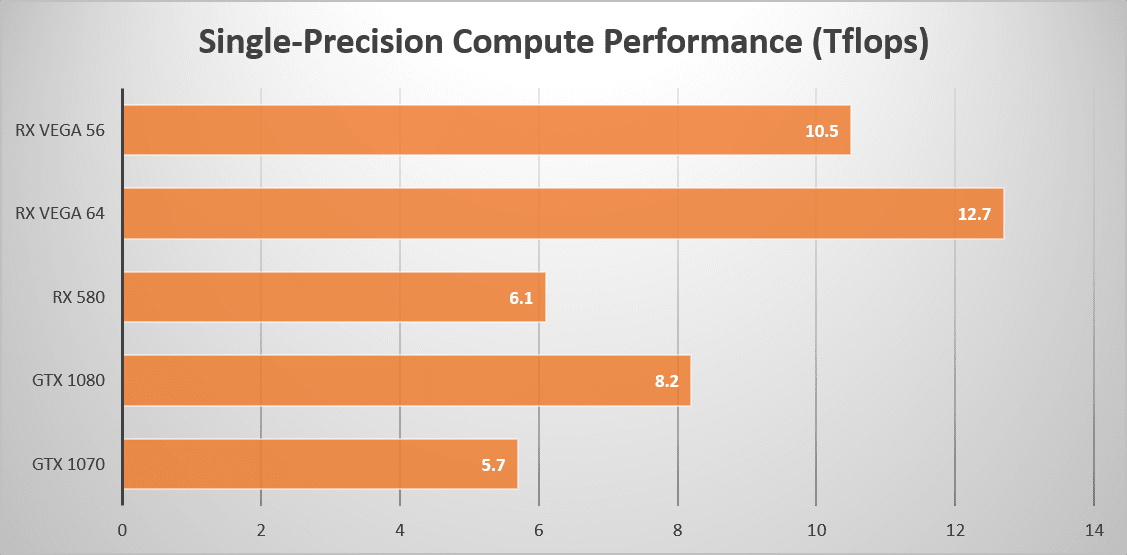

When comparing with other graphics cards, we can see AMD’s RX Vega cards are looking quite promising. RX Vega 64 and Vega 56 have a single-precision compute performance of 12.7 Tflops and 10.5 Tflops respectively (air-cooled reference models). This is more than 72% better than the RX 580, and over 30% higher than the Nvidia GTX 1080. Although these synthetic benchmark results are not identical to real world performance, at least we can see the potential of the RX Vega.

Release Date

The RX Vega 64 and RX Vega 56 cards will be available in late August. No exact release date is known yet.

Source from AMD Radeon.
